Budget Air Atmosfer

Formula

Persamaan budget air atmosfer (atmospheric water budget) didasarkan pada konsep konservasi atau kekekalan uap air pada koordinat tekanan atmosfer.¹

\frac{dq}{dt} = S \tag{1}

dimana

\frac{d}{dt} = \frac{\partial}{\partial t} + u\frac{\partial}{\partial x} + v\frac{\partial}{\partial y} + \omega \frac{\partial}{\partial p}

$u$ dan $v$ merupakan komponen angin horizontal ( $m/s$ ), $\omega$ merupakan kecepatan vertikal pada koordinat tekanan atmosfer ( $Pa/s$ ), $q$ merupakan kelembapan spesifik ( $g/kg$ ), dan $S$ merupakan simpanan (storage) uap air di atmosfer. $S = e-c$ (evaporasi minus kondensasi pada parsel udara).

Berdasarkan persamaan kontinuitas massa,

\frac{\partial u}{\partial x} + \frac{\partial v}{\partial y} + \frac{\partial \omega}{\partial p} = 0

Pers. 1 dapat diubah ke bentuk flux

\frac{\partial q}{\partial t} + \underbrace{u \frac{\partial q}{\partial x} + v \frac{\partial q}{\partial y} + \omega \frac{\partial q}{\partial p}}_\text{advection term} + \underbrace{q \left( \frac{\partial u}{\partial x} + \frac{\partial v}{\partial y} + \frac{\partial \omega}{\partial p} \right)}_\text{divergence term} = e-c \tag{2}

\frac{\partial q}{\partial t} + \underbrace{\frac{\partial \left( qu \right)}{\partial x} + \frac{\partial \left( qv \right)}{\partial y} + \frac{\partial \left( q\omega \right)}{\partial p}}_\text{flux form} = e-c

\underbrace{\frac{\partial q}{\partial t}}_\text{local rate of change} + \underbrace{\nabla \cdot \left( q\vec{V} \right)}_\text{horizontal MFD} + \underbrace{\frac{\partial \left( q\omega \right)}{\partial p}}_\text{vertical MFD} = e-c \tag{3}

MFD merupakan moisture flux divergence.

Pers. 3 berlaku untuk lapisan atmosfer tertentu. Apabila kita integrasikan dari lapisan atmosfer permukaan ( $ps$ ) hingga lapisan troposfer atas ( $pt$ ), maka didapatkan persamaan berikut.

E-P = \frac{\partial <q>}{\partial t} + \nabla \cdot <q\vec{V}> + \frac{\partial <q\omega>}{\partial p} \tag{4}

dimana

<\cdot> = \frac{1}{g} \int_{ps}^{pt} (\cdot) dp

$E-P =$ evaporasi minus presipitasi.
$\frac{\partial <q>}{\partial t} =$ kecenderungan atau tendency dari precipitable water.
$\nabla \cdot <q\vec{V}> =$ divergensi horizontal dari transpor uap air.
$\frac{\partial <q\omega>}{\partial p} =$ divergensi vertikal dari transpor uap air.

Implementasi di NCL

Budget air atmosfer dapat dikalkulasi berdasarkan data reanalisis menggunakan parameter angin horizontal ( $u$ dan $v$ ), kelembapan spesifik (q), dan kecepatan vertikal ( $Pa/s$ ). Lapisan atmosfer dapat disesuaikan dari lapisan permukaan (atau 1000 hPa) hingga lapisan atas troposfer (biasanya 100 hPa). Persamaan budget air atmosfer biasanya dikalkulasi untuk rata-rata wilayah tertentu.


undef("moisture_budget")
function moisture_budget(time[*]:numeric,p,u,v,q,omega,npr[1]:integer,lat,lon,opt[1]:logical)
begin
    ;;------------------------------------------------------------------------------------------:
    ; Nomenclature
    ; time    - "seconds since ..."
    ; p       - Pressure [Pa]
    ; u,v     - zonal, meridional wind components[m/s]
    ; q       - specific humidity [kg/kg]
    ; omega   - vertical velocity [Pa/s]
    ; npr     - dimension number corresponding to pressure dimension
    ; lat     - dimension corresponding to latitude dimension, used for advection and divergence
    ; lon     - dimension corresponding to latitude dimension
    ; opt     - set to False
    ;;------------------------------------------------------------------------------------------:
    ;
    ;  Moisture budget
    ;  e - c = dq/dt + {del}.[u*q, v*q] + d(omega*q)/dt
    ;  E - P = d<q>/dt + {del}.<[u*q, v*q]> + d<(omega*q)>/dt
    ;  <.>   = 1/g * Int_ps->ptop(.)
    ;
    ;;------------------------------------------------------------------------------------------:

    print("========================")
    print("Starting function moisture_budget")
    print("")

    ;*******************************************
    ;---Compute local dq/dt  {(kg/kg)/s}
    ;*******************************************

    dqdt                    = center_finite_diff_n (q,time,False,0,0)     ; 'time' is 'seconds since'
    copy_VarCoords(q, dqdt)
    dqdt@longname           = "Spesific humidity: Local Time derivative"
    dqdt@units              = "(kg/kg)/s"
    ;printVarSummary(dqdt)
    ;printMinMax(dqdt,0)
    ;print("-----")

    ;*******************************************
    ;---Compute moisture flux  {(kg/kg)/s}
    ;*******************************************

    uq                      = u*q                                         ; (:,:,:,:)
    uq@long_name            = "Zonal Moisture Flux [uq]"
    uq@units                = "["+u@units+"]["+q@units+"]"                ; [m/s][kg/kg]
    copy_VarCoords(u,uq)                                                  ; (time,level,lat,lon)

    vq                      = v*q                                         ; (:,:,:,:)
    vq@long_name            = "Meridional Moisture Flux [vq]"
    vq@units                = "["+v@units+"]["+q@units+"]"
    copy_VarCoords(v,vq)                                                  ; (time,level,lat,lon)

    ;*******************************************
    ;---Horizontal Divergence of moisture flux: uv2dv_cfd => regional 'fixed' rectilinear grid
    ;*******************************************

    mfd                    = uv2dv_cfd(uq, vq, lat, lon, 2)              ; (time,level,lat,lon)
    copy_VarCoords(q, mfd)
    mfd@long_name          = "Horizontal Divergence of Moisture Flux"
    mfd@units              = "(kg/kg*s)"                                 ; (1/m)*[(m/s)(g/kg)] => [g/(kg-s)]

    ;*******************************************
    ;---Vertical Divergence of moisture flux: uv2dvF => global 'fixed' rectilinear grid
    ;*******************************************

    dqdp                    = center_finite_diff_n (q,p,False,1,npr)
    copy_VarCoords(q, dqdp)
    dwq                     = omega*dqdp
    copy_VarCoords(q, dwq)
    dwq@long_name           = "Vertical Divergence of Moisture Flux"
    dwq@units               = "(kg/kg)/s"
    ;printVarSummary(dwq)
    ;printMinMax(dwq,0)
    ;print("-----")

    ;********************************************
    ;---Vertical integration
    ; [Joule]      kg-m2/s2 = N-m = Pa/m3 = W-s           ; energy
    ;********************************************

    ptop            = 10000.0                           ; Pa
    pbot            = 100000.0
    vopt            = 1                                 ; weighted vertical sum

    g               = 9.80665                           ; [m/s2] gravity at 45 deg lat used by the WMO
    dp              = dpres_plevel_Wrap(p,pbot,ptop,0)
    dpg             = dp/g                              ; Pa/(m/s2)=> (Pa-s2)/m
    dpg@long_name   = "Layer Mass Weighting"
    dpg@units       = "kg/m**2"                         ; dp/g     => Pa/(m/s2) => [kg/(m-s2)][m/s2] reduce to (kg/m2)
                                                        ;             Pa (s2/m) => [kg/(m-s2)][s2/m]=>[kg/m2]

    ;-Precipitable water tendency

    dpgq            = conform(q,dpg,1)
    pw              = wgt_vertical_n(q,dpgq,vopt,1)
    copy_VarCoords(q(:,0,:,:),pw)
    pw@long_name    = "Precipitable water"
    pw@units        = "kg/m**2"

    pwdt            = center_finite_diff_n (pw,time,False,0,0)
    copy_VarCoords(q(:,0,:,:),pwdt)
    pwdt@long_name  = "Precipitable water tendency"
    pwdt@units      = "(kg/m**2)/s"
    pwdt@info       = "Term 1 in moisture budget eq."

    delete(pw)

    ;-Vertically Integrated Horizontal Moisture flux

    uq_dpg          = uq*dpgq                         ; mass weighted 'uq'; [m/s][g/kg][kg/m2]=>[m/s][g/kg]
    iuq             = dim_sum_n(uq_dpg, 1)
    iuq@long_name   = "Integrated Zonal UQ [uq*dpg]"
    iuq@LONG_NAME   = "Sum: Mass Weighted Integrated Zonal Moisture Flux [uq*dpg]"
    iuq@units       = "[m/s][g/kg]"
    copy_VarCoords(u(:,0,:,:), iuq)                ; (time,lat,lon)
    delete(uq_dpg)

    vq_dpg          = vq*dpgq                         ; mass weighted 'vq'; [m/s][g/kg][kg/m2]=>[m/s][g/kg]
    ivq             = dim_sum_n(vq_dpg, 1)
    ivq@long_name   = "Integrated Meridional VQ [vq*dpg]"
    ivq@LONG_NAME   = "Sum: Mass Weighted Integrated Meridional Moisture Flux [vq*dpg]"
    ivq@units       = "[m/s][g/kg]"
    copy_VarCoords(v(:,0,:,:), ivq)                ; (time,lat,lon)
    delete(vq_dpg)

    ;-Vertically Integrated Horizontal Moisture flux Divergence

    mfd_dpg        = mfd*dpgq                         ;  [g/(kg-s)][kg/m2] => [g/(m2-s)]
    imfd           = dim_sum_n(mfd_dpg, 1)
    imfd@long_name = "Integrated Mass Wgt MFD"
    imfd@LONG_NAME = "Integrated Mass Weighted Moisture Flux Divergence"
    imfd@units     = "(kg/m**2)/s"
    copy_VarCoords(u(:,0,:,:), imfd)               ; (time,lat,lon)
    delete(mfd_dpg)

    vimfd           =  imfd                           ; keep meta data
    ; VIMFD           = -VIMFD                          ; Note the preceding -1 [negative precedes integration]
    vimfd@long_name = "Vertically Integrated Moisture Flux Divergence"
    vimfd@units     = "(kg/m**2)/s"
    vimfd@info      = "Term 2 in moisture budget eq."

    ;-Vertically Integrated Vertical Moisture flux Divergence

    dpgdwq          = conform(dwq,dpg,1)
    idwq            = wgt_vertical_n(dwq,dpgdwq,vopt,1)
    copy_VarCoords(q(:,0,:,:),idwq)
    idwq@long_name  = "Integrated vertical moisture flux divergence"
    idwq@units      = "(kg/m**2)/s"
    idwq@info       = "Term 3 in moisture budget eq."

    print("")
    print("Function moisture_budget is done")
    print("========================")

    return( [/dqdt, pwdt, uq, vq, iuq, ivq, mfd, vimfd, dwq, idwq/] )
end

Contoh Output

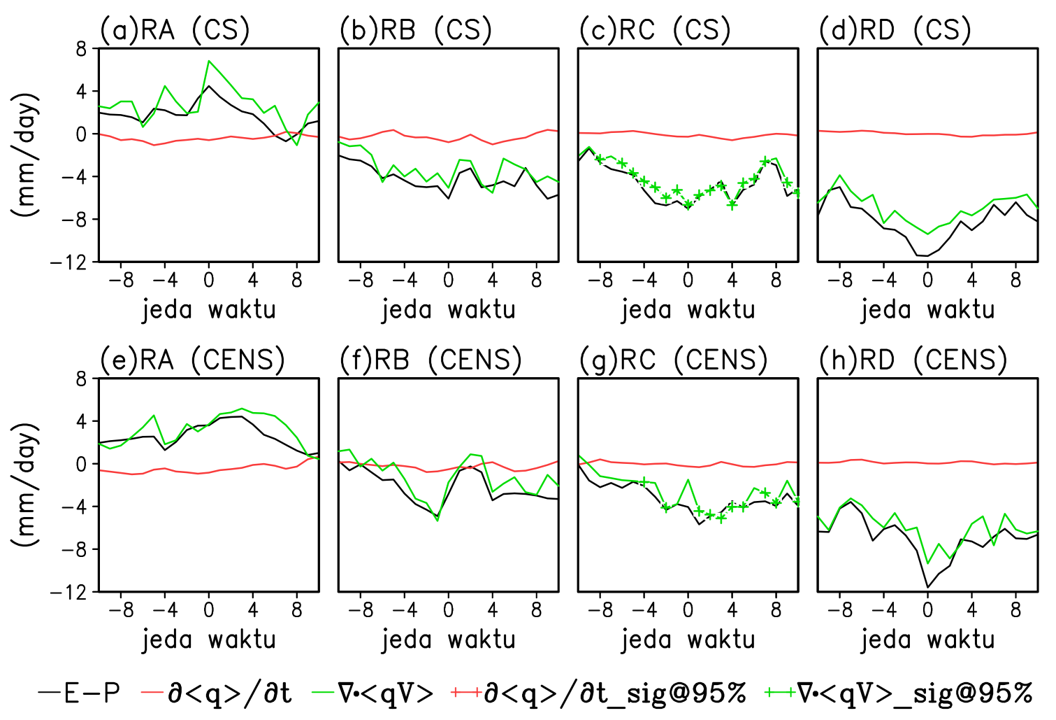

Gambar berikut menampilkan komponen dari persamaan budget air atmosfer tanpa mengikutsertakan suku ketiga (vertical MFD). Gambar divisualisasikan menggunakan GrADS².

Transpor uap air

Komponen dari persamaan budget air atmosfer untuk kasus cold surge (CS) dan cross equatorial northerly surge (CENS) selama periode tahun 2010-2019

Notes

Banacos, P. C., & Schultz, D. M. (2005). The Use of Moisture Flux Convergence in Forecasting Convective Initiation: Historical and Operational Perspectives, Weather and Forecasting, 20(3), 351-366. https://doi.org/10.1175/WAF858.1 ↩
Ploting multiple panel semacam output diatas seringkali cukup membosankan apabila kita mengaturnya satu per satu. Menggunakan metode iterasi tentu lebih efisien untuk menyelesaikan pekerjaan berulang. Cek postingan berikut Looping untuk Plotting Multi Panel di GrADS ↩
